Haskell Basics: Functions and Pictures
The Haskell Logo

The Haskell Logo

Prelude

What is Haskell?

Haskell is a lazy, functional programming language created in the late 1980’s by a committee of academics. There were a plethora of lazy functional languages around, everyone had their favorite, and it was hard to communicate ideas. So a bunch of people got together and designed a new language, taking some of the best ideas from existing languages (and a few new ideas of their own). Haskell was born.

So what is Haskell like? Haskell is:

Functional

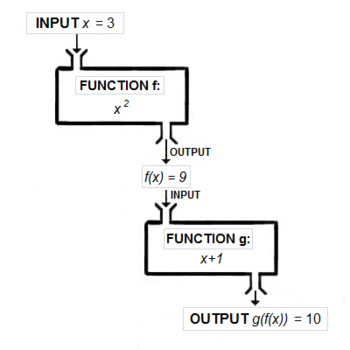

Function composition

Function composition

There is no precise, accepted meaning for the term “functional”. But when we say that Haskell is a functional language, we usually have in mind two things:

Taken together, these result in an entirely different way of thinking about programming. Much of our time this semester will be spent exploring this way of thinking.

Pure

Not this kind of purity

Not this kind of purity

Haskell expressions are always referentially transparent, that is:

This may sound crazy at this point. How is it even possible to get anything done without mutation or side effects? Well, it certainly requires a shift in thinking (if you’re used to an imperative or object-oriented paradigm). But once you’ve made the shift, there are a number of wonderful benefits:

Lazy

Not this kind of laziness

Not this kind of laziness

In Haskell, expressions are not evaluated until their results are actually needed. This is a simple decision with far-reaching consequences, which we will explore throughout the semester. Some of the consequences include:

Statically typed

Not this kind of static

Not this kind of static

Every Haskell expression has a type, and types are all checked at compile-time. Programs with type errors will not even compile, much less run.

Themes

Throughout this course, we will focus on three main themes.

Types

Static type systems can seem annoying. In fact, in languages like C++ and Java, they are annoying. But this isn’t because static type systems per se are annoying; it’s because C++ and Java’s type systems are insufficiently expressive! This semester we’ll take a close look at Haskell’s type system, which

Abstraction

“Don’t Repeat Yourself” is a mantra often heard in the world of programming. Also known as the “Abstraction Principle”, the idea is that nothing should be duplicated: every idea, algorithm, and piece of data should occur exactly once in your code. Taking similar pieces of code and factoring out their commonality is known as the process of abstraction.

Haskell is very good at abstraction: features like parametric polymorphism, higher-order functions, and type classes all aid in the fight against repetition. Our journey through Haskell this semester will in large part be a journey from the specific to the abstract.

Wholemeal programming

Another theme we will explore is wholemeal programming. A quote from Ralf Hinze:

“Functional languages excel at wholemeal programming, a term coined by Geraint Jones. Wholemeal programming means to think big: work with an entire list, rather than a sequence of elements; develop a solution space, rather than an individual solution; imagine a graph, rather than a single path. The wholemeal approach often offers new insights or provides new perspectives on a given problem. It is nicely complemented by the idea of projective programming: first solve a more general problem, then extract the interesting bits and pieces by transforming the general program into more specialised ones.”

For example, consider this pseudocode in a C/Java-ish sort of language:

int acc = 0;
for ( int i = 0; i < lst.length; i++ ) {
  acc = acc + 3 * lst[i];
}

This code suffers from what Richard Bird refers to as “indexitis”: it has to worry about the low-level details of iterating over an array by keeping track of a current index. It also mixes together what can more usefully be thought of as two separate operations: multiplying every item in a list by 3, and summing the results.

In Haskell, we can just write

sum (map (3*) lst)

This semester we’ll explore the shift in thinking represented by this way of programming, and examine how and why Haskell makes it possible.

Programming environment

In this class, we start working within a programming environment called CodeWorld, which you can access at http://code.world/haskell (the /haskell is important). This has the advantages that

We will switch to compiling programs locally later during the course. If you want to work locally already now, there are instructions on the course website.

Basic Haskell

So let us see some Haskell code. On CodeWorld, we generally start with this code (open on CodeWorld):

{-# LANGUAGE OverloadedStrings #-}
import CodeWorld

ourPicture :: Picture
ourPicture = blank

main :: IO ()
main = drawingOf ourPicture

Most of these lines are not interesting initially, and will be understood fully later on. If we run this, using the green “Run” button, or alternatively pressing Ctrl-Enter, we see … nothing.

Declarations and variables

Not very surprising, since our picture is blank. So let us change this line to something that we can see:

ourPicture = solidCircle 1

We now see a solid black circle of radius 1:

What happens here? This code declares a variable with name ourPicture with type Picture (“::” is pronounced “has type”), and defines its value to be circle 1.

Note that this will be the value of ourPicture forever (at least, in this particular program). The value of ourPicture cannot be changed later.

If we would try to write something like

ourPicture = solidCircle 1
ourPicture = solidCircle 2

then we get an error message complaining about Multiple declarations of ‘ourPicture’.

In Haskell, variables are not mutable boxes; they are just names for values!

Put another way, = does not denote “assignment” like it does in many other languages. Instead, = denotes definition, like it does in mathematics. That is, ourPicture = solidCircle 1 should not be read as “ourPicture gets solidCircle 1” or “assign solidCircle 1 to ourPicture”, but as “ourPicture is defined to be solidCircle 1”.

What do you think this code means?

y :: Integer
y = y + 1

Picture Types and Functions

In contrast to a classical intro into Haskell, we do not start with numbers, booleans, tuples, lists and strings, but we start with pictures. These are of course library-defined (hence the import CodeWorld) and not part of “the language”. But that does not make them less interesting, and in fact, even the basic boolean type is library defined – it just happens to be the standard library.

Primitive pictures

Every picture is a value of type, well, Picture. We have seen two such values so far: blank and solidCircle 1. There are many more primitive pictures, for rectangles, polygons, lines, arcs and text. To get an overview, see the Help button on CodeWorld: From there you can reach the documentation of the CodeWorld API.

If we look at the documentation for solidCircle, it says

solidCircle :: Double -> Picture

The arrow (->) indicates that solidCircle itself is a function, turning a value of type Double – i.e. a floating point number – into a picture. Now 1 happens to be a real number, therefore solidCircle 1 is a Picture.

You can see that function application in Haskell works without parentheses, you just write the argument after the function. But if the argument itself is more complex than just one number of variable name, you have to put parentheses around it:

ourPicture = solidCircle (1+1)

Modifying Pictures

Let us bring some color into the picture. In the documentation, we see this function

colored :: Color -> Picture -> Picture

There are two arrows! What do we make of that? This means that colored is a function expecting two arguments, namely a color and a picture, and then returns a – presumably colored – picture. There are many colors defined, so we can write

ourPicture = colored green (solidCircle 1)

As you see, even multiple arguments are just written after the function, separated by a space, and complex arguments need to be enclosed in parentheses.

So what is the deal with two two arrows? Why not just Color Picture -> Picture? It might seem strage to you now, but there is a very deep and beautiful reason, to which we will get in a few weeks; for now you just have to take my word for it!

Composing Pictures

By now we are tired of seeing single circles. We want more! So we need a way to draw more than one thing. So what we are looking for is a function that takes two pictures, and combines them to one. You should agree with me that such a function likely would have type Picture -> Picture -> Picture.

And now we are expericing one of the advantages of a good type system: We can search for a type! Indeed, there is only function in the documentation that has this type

(&) :: Picture -> Picture -> Picture

That is a strange name for a function, but it is indeed one name for it, and we could use (&) as a normal function, putting the arguments to its right. But, as you migh have guessed, we can use & (without the parentheses) as an operator, and put it in between two pictures.

ourPicture = colored green (solidCircle 1) & solidCircle 2

From the resulting picture we can learn a few things

In order to create nicer pictures, we need to be able to place our pictures somewhere else than just the middle. For this, we use the function

translated :: Double -> Double -> Picture -> Picture

which shoves a picture around. So here we go:

ourPicture = colored green (translated 0 (-1.5) (solidCircle 1)) & colored red (translated 0 (1.5) (solidCircle 1))

Now we are getting somewhere. The parentheses around -1.5 are necessary as otherwise the compiler would think we want to use the binary subtraction operator.

Our code line got too long, so let us name some of the components and give them their own names, and while we are at it, draw a frame around our traffic light (open on CodeWorld):

botCircleGreen = colored green (translated 0 (-1.5) (solidCircle 1))
topCircleRed   = colored red   (translated 0   1.5  (solidCircle 1))
frame = rectangle 2.5 5.5
trafficLight = botCircleGreen & topCircleRed & frame

ourPicture :: Picture
ourPicture = trafficLight

Defining functions

We have seen how to use functions, but we also want define our own. And in a way, we have been defining functions all the time when we wrote something = this and that; this defined a function something, which just happend to not take any argument. If we want it to take any arguments, we just write give their names on the left:

botCircle c = colored c (translated 0 (-1.5) (solidCircle 1))
topCircle c = colored c (translated 0   1.5  (solidCircle 1))
frame = rectangle 2.5 5.5
trafficLight = botCircle green & topCircle red & frame

ourPicture :: Picture
ourPicture = trafficLight

A normal traffic light never shows red and green at the same time. So let us turn trafficLight into a function that shows either a green or a red light. So the argument is going to be a boolean value of type Bool, which can be either True or False. And as a matter of fact, we can write define trafficLight by handling these two cases:

trafficLight True  = botCircle green & topCircle black & frame
trafficLight False = botCircle black & topCircle red   & frame
ourPicture = trafficLight True

We could, and we should, also write down the type of trafficLight. Not that the compiler needs us to do that – it is smart enough to figure that out by itself. But it helps us to understand the code better, to confirm that what we wrote is actually what we intended, and to narrow down bugs in the code. Conveniently, the compiler tells us about the correct signture, so we can just copy that:

trafficLight :: Bool -> Picture

Here we have applied a very important method in programming in general, and one that is even more powerful in functional programming (for reasons you will learn to appreciate later): We abstracted our code, by making the topCircle function abstract in the color, and the trafficLight function abstract in the state it is in.

Animations

Now the traffic light is green, but we want it to switch to red every now and then. The CodeWorld API not only allows us to draw drawings, but also to run animations. What is an animation? It is a picture that changes over time, where time can conveniently be understood as the number of seconds since the start of the animation.

In imperative language, one would probably have a getCurrentTime() function and call that from somewhere in our drawing generating. This is not possible nor desirable in a pure functional language, as it would be a hidden side effect. Instead, the time is provided as a parameter.

So here this codes makes the traffic light switch every three seconds:

trafficController :: Double -> Picture
trafficController t
  | round (t/3) `mod` 2 == 0 = trafficLight True
  | otherwise                = trafficLight False

main :: IO ()
main = animationOf trafficController

From looking at the code (open on CodeWorld) we notice

Numerical Types

There are three number-related types we should know about for now: Int, Integer and Double.

Together with these functions, there are a bunch of operations, as you would expect:

You cannot mix different types in the same operation, e.g. you cannot directly add d1 + i. If you want to do that, you have to explicitly convert

If you are used to other languages which do implicit conversion of numeric types, this can all seem rather prudish and annoying at first. However, I promise you’ll get used to it – and in time you may even come to appreciate it. Implicit numeric conversion encourages sloppy thinking about numeric code.

In the code above, we also used (==). This compares two values of the same type for equality. It does work on most types (more on that later). It even works on floating point numbers, but really, it should not be used there (why? see this article). The test for inequality is (/=).

There is also (<), (>), (<=), (>=) for comparisons and min and max to take the minimum or maximum of two values.

Recursion

The last topic for today is recursion. Recursion is when a function calls itself again. Or, more general, if multiple functions call each other.

Recursion is, like abstraction, a very powerful method in functional programming and once you are done with this course, thinking about recursion is going to be the most natural thing in the world.

So lets say we want to put multiple traffic lights next to each other. We could do it this way (open on CodeWorld):

lights :: Integer -> Picture
lights 0 = blank
lights n = trafficLight True & translated 3 0 (lights (n-1))

ourPicture = lights 3

main = drawingOf ourPicture

The function lights is again defined over multiple cases, by pattern-matching on the number of lights to draw. If we should draw no light, we do not draw anything. Otherwise, we draw one light, and the remaining lights shifted to the right.

This is a typical form of recursion: We have a base case, which does not itself use the recursive function any more, and we have the recursive cases, which do.

What happens if I try to draw lights (-1)? What if I swap the arguments to (&)?

Of course, there is a lot of logic involved in lights that that is not specific to traffic lights, so this does call out for some abstraction. We will abstract out both the picture to draw, and how far we shift to the right in every step (open on CodeWorld):

spread :: Picture -> Double -> Integer -> Picture
spread pic dx 0 = blank
spread pic dx n = pic & translated dx 0 (spread pic dx (n-1))

ourPicture = spread (trafficLight True) 3 4

Side remark: With this code, the compiler warns about unused variables pic and dx. This is a helpful warning, as more often than not if you do not use a value that you named, then that is a bug. If it is not, like in this case, replace the binding by _, indicating that you do not want to name this parameter.

A recursive function may call itself more than once, and this allows for nice drawings open on CodeWorld:

tree :: Integer -> Picture
tree 0 = blank
tree n = path [(0,0),(0,1)] & translated 0 1 (
    rotated (pi/10) (tree (n-1)) & rotated (- pi/10) (tree (n-1)))

main = drawingOf (tree 8)

We will get to the meaning of the lists with brackets and the pairs with parentheses next lession, for now just consider this a way of drawing a line from one point to another.

(Do you want to see the tree folding and unfolding? Requires only minor changes to the code… check out this animation.)

Code Comments

Not very exciting, but good to know: You can have comments in Haskell code in one of two formats:

-- Two hyphens, until the end of the line
{- or enclosed
   in curly brace/hyphen pairs, which may span multiple lines
 -}

A word about error messages

Actually, six:

Don’t be scared of error messages!

GHC’s error messages can be rather long and (seemingly) scary. However, usually they’re long not because they are obscure, but because they contain a lot of useful information! Here’s an example:

Prelude> 'x' ++ "foo"

<interactive>:1:1:
    Couldn't match expected type `[a0]' with actual type `Char'
    In the first argument of `(++)', namely 'x'
    In the expression: 'x' ++ "foo"
    In an equation for `it': it = 'x' ++ "foo"

First we are told “Couldn’t match expected type [a0] with actual type Char”. This means that something was expected to have a list type, but actually had type Char. What something? The next line tells us: it’s the first argument of (++) which is at fault, namely, 'x'. The next lines go on to give us a bit more context. Now we can see what the problem is: clearly 'x' has type Char, as the first line said. Why would it be expected to have a list type? Well, because it is used as an argument to (++), which takes a list as its first argument.

When you get a huge error message, resist your initial impulse to run away; take a deep breath; and read it carefully. You won’t necessarily understand the entire thing, but you will probably learn a lot, and you may just get enough information to figure out what the problem is.
