Homework 8: Traveling Salesman Problem

A. Goals

The purpose of the Travelling Salesman Problem assignment is to practice implementing linked lists. The specific goals are to:

Implement and use a linked list, a type of recursive data structure
Learn about the Travelling Salesman Problem, an important theoretical problem in computer science

B. Background

A travelling salesman needs to visit each of n cities exactly once, and arrive back home, keeping the total distance travelled as short as possible. In this assignment, you will write a program to find a path connecting n points that passes through each point exactly once.

The travelling salesman problem is a notoriously difficult combinatorial optimization problem. There does not exist an efficient algorithm to find the optimal tour, the tour of smallest distance. The only way to find the optimal tour is to use brute force: to compute the distance of all possible tours. The problem with this is that there are n! (n factorial) possible tours; enumerating them all and computing their distance would be very slow.

However, there are efficient ways to find a tour that is near-optimal; these methods are called heuristics. You will implement two heuristics to find good (but not optimal) solutions to the traveling salesman problem.

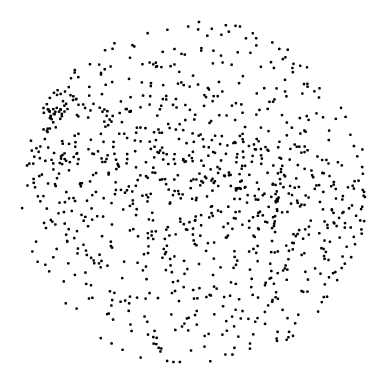

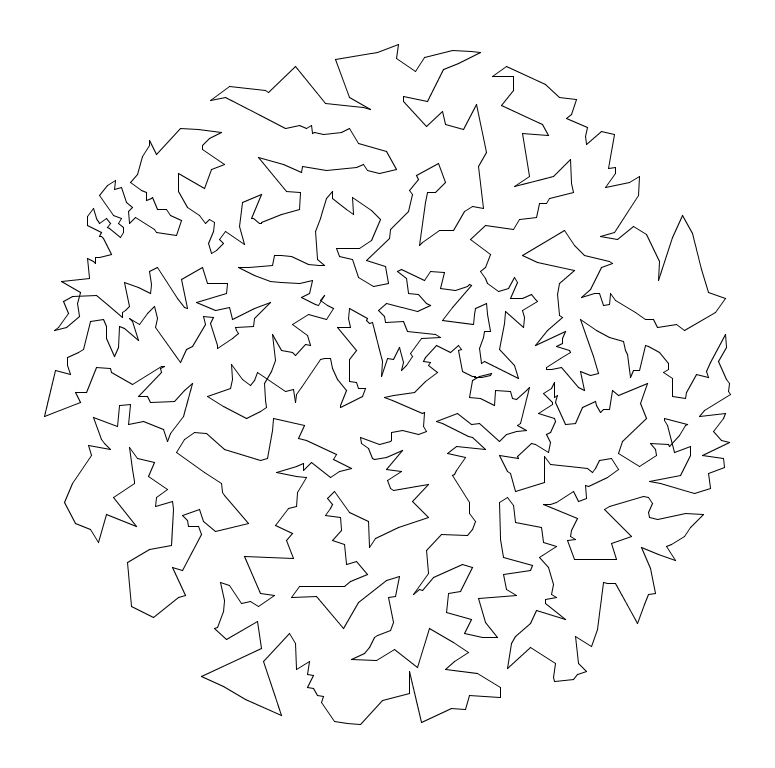

1,000 points	optimal tour through the same 1,000 points

The travelling salesman problem has a wealth of applications such as vehicle routing, circuit board drilling, circuit board design, robot control, X-ray crystallography, machine scheduling, and computational biology.

C. Your program

In this assignment, you will write a Tour class that models a tour by a linked list of Points.

You will implement the following methods to insert points into a tour.

In-order insertion Insert each point at the end of the current tour. This is the easiest to implement.
Nearest-neighbor heuristic Insert each point into the tour after the closest point that is already in the tour.
Smallest-increase heuristic Insert each point into the tour where it would cause the smallest increase in the tour distance.

D. Getting started

Download data.zip and decompress it into your folder for this homework assignment. This zip file contains data files you can use for testing as well as some helper classes and interfaces you will need:
- TourInterface.java is described above.
- Point.java represents points in your tour, and is described in detail in the next tab.
- VisualizeTour.java is a program that help you graphically test your Tour class as you write it. It takes a single command-line argument—the name of the data file to use; directions for using it are displayed in the window when you run it.
Review the class material and textbook chapters on linked lists.

This assignment was originally developed by Bob Sedgewick and Kevin Wayne. It was adapted by Benedict Brown.

1. Tour class

In this section, you will write Tour, implementing TourInterface.

A. The `Point` class

data.zip contains the Point class that represents a point in a tour. Open it in DrJava and study it carefully. The API is as follows:

public class Point
------------------------------------------------------------------------------------------------------
       Point(double x, double y)    // create the Point (x, y)
String toString()                   // return String representation
  void draw()                       // draw Point using PennDraw
  void drawTo(Point that)           // draw line segment between this Point and that
double distanceTo(Point that)       // return Euclidean distance between this Point and that

B. The `Tour` class

Create a skeleton for your Tour class, which must implement TourInterface:

public interface TourInterface
-----------------------------------------------------------------------------------------------------------
String toString()                 // create a String representation of the Tour
  void draw(Point p)              // draw the Tour using PennDraw
                                  // any edge starting or ending at p should be in a distinct color
   int size()                     // number of Points in this Tour
double distance()                 // return the total distance of the Tour
  void insertInOrder(Point p)     // insert p at the end of the Tour
  void insertNearest(Point p)     // insert p using the nearest neighbor heuristic
  void insertSmallest(Point p)    // insert p using the smallest increase heuristic

Write method stubs for each method declaration in the TourInterface interface. The stubs must each return a dummy value if necessary so that Tour.java compiles.

Add appropriate header comments and method comments.

C. Linked list `Node` class

Your Tour class must use a linked list using a private inner class Node. Each Node holds a reference to a Point.

You can create an inner class by declaring a class inside another. For instance, one can write

class OuterClass {
    // ...
    class InnerClass {
        // ...
    }
}

Such an arrangement is useful when grouping classes that are only used in a certain context, leading to more encapsulation and greater code maintainability.

Just like fields, inner classes can be declared as public or private. private inner classes can only be used within the surrounding class. Inner classes are able to access the fields of its surrounding class. However, because inner class instances must be associated with an instance of the outer class, inner classes cannot declare static members, and they cannot be instantiated independently of the instance of the outer class.

Declare a private field head in your Tour class to hold the first Node in the Tour.

Your linked list should contain two Nodes that contain the first Point of the Tour – one of these Nodes at the head, and the other Node at the end. Both of these two Nodes must refer to the same Point object (as opposed to them referring to distinct Point object instances with the same field values). This is a required implementation detail.

You may not use Java's built-in LinkedList class to implement your linked list.

D. Constructor and `toString()`

Implement a single constructor for your Tour class that takes no arguments and creates an empty Tour.

toString() returns a String representation of the Tour (the first Point should show up at the end as well, just like it does in your linked list structure). Call toString() on each Point to get a String representation of the Point. Add a line break character, '\n', after each Point. Your output must match this description exactly in order to pass our grading scripts.

If the Tour is empty (has no Points), toString() should return the empty String.

Required Testing: Add a main that creates an empty tour and prints it out. Your program should now simply print a blank line. Once this works, submit and make sure you also pass the empty tour submission test.

E. `insertInOrder()`

To facilitate testing, you will need to implement insertInOrder() so you can add Points to your tour.

insertInOrder(Point p) adds the Point p as the last Point of the Tour.

Remember that your Tour class should maintain one Node at the end of the linked list referring to the first Point.

If the Tour is empty, make sure that after this method finishes, your linked list contains two Node objects, both referring to the same Point.

If you wish, you may write a helper function that adds a given Point after a given Node. (Helper functions should be declared private.)

Required Testing: Add code to main to create the following four points and add them to your tour using insertInOrder():

a = (0, 0)
b = (1, 0)
c = (1, 1)
d = (0, 1)

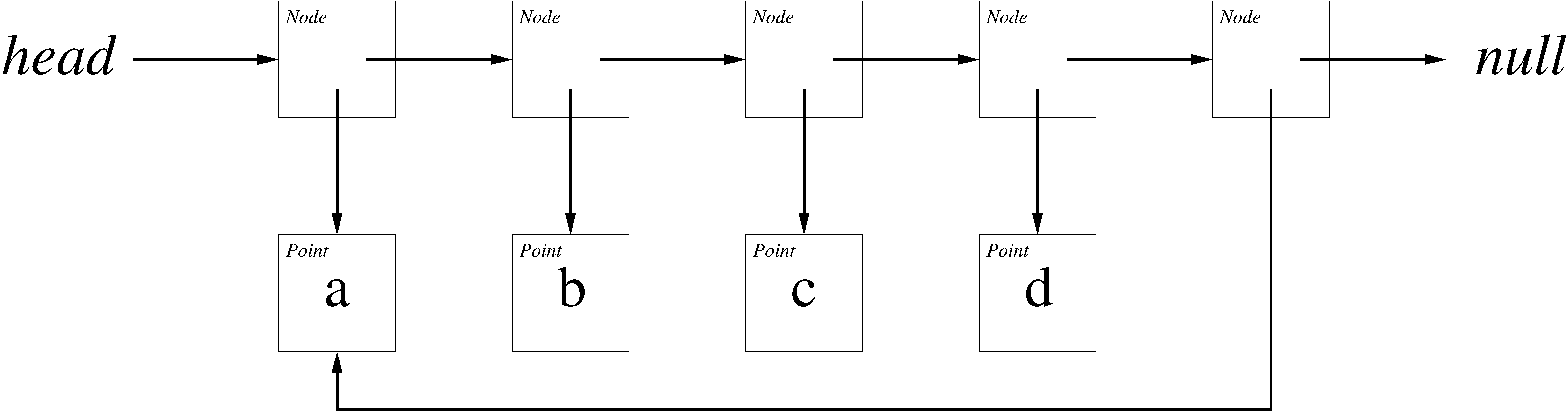

The following image shows the structure of the link list these insertions should create:

four-point tour visualization

Print out the tour using System.out.println You should see the following output (including a blank line at the end):

(0.0, 0.0)
(1.0, 0.0)
(1.0, 1.0)
(0.0, 1.0)
(0.0, 0.0)

Once this test passes, submit your code and make sure it passes our toString() tests for insertInOrder() as well. (At this point, your code will still fail the tests for size() and distance().)

F. Utility Methods

Implement the size(), distance(), and draw() methods of Tour. There are many good ways to implement these methods, using for loops, while loops, or recursion. The choice is up to you.

size() returns the number of Points in the Tour, (without including the first Point twice).

distance() returns the total length of the Tour from Point to Point. Use the distanceTo(Point p) method of a Point to find its distance to p. An empty Tour has a distance of 0.0.

draw(Point p) draws the Tour from Point to Point using PennDraw. Both edges adjacent to Point p are drawn in a different color (if p is null, none of the edges should be in a different color). Use the drawTo(Point q) method of a Point to draw a line from it to q.

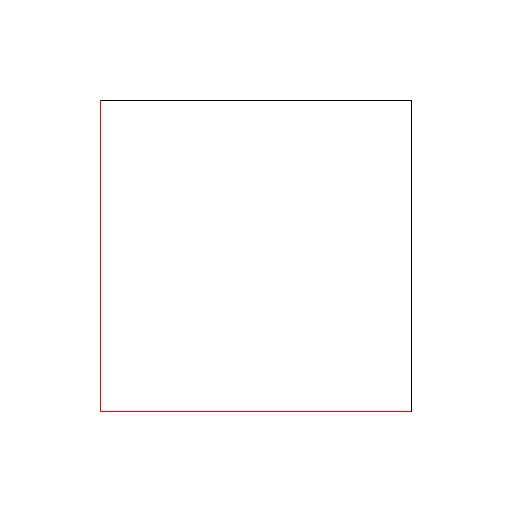

The image below shows what our reference draws when we call tour.draw(a). tour is the four-point tour you created for testing.

Required Testing: Add code to main to test each of these methods on an empty tour, a tour containing only one point, a tour containing two points, and a tour containing four points. We encourage you to include additional tests as well. When you are certain all of your own tests work, submit and make sure our tests pass as well.

As you debug your code, you may find this Java execution visualizer helpful. (It was created by daveagp.)

2. Tour insertion hueristics

Implement the insertNearest() and insertSmallest() methods.

A. Testing with `VisualizeTour`

The client VisualizeTour program included in data.zip provides a user interface for you to test the methods you have written in Tour. Run it with a filename argument to animate the construction of your Tour. In the table at the bottom of this page, we have listed the values of size() and distance() that your methods should obtain for each insert method, as well as the PennDraw output that draw() should give.

Required Testing: Check that your in-order insertion method works for at least the input files tsp0.txt, tsp1.txt, tsp2.txt, tsp3.txt, tsp4.txt, tsp5.txt, tsp8.txt, tsp10.txt, and tsp100.txt. Both the drawing itself, and the size and distance, need to match. Do not continue until insertInOrder works for all these cases!

B. `insertNearest()`

insertNearest(Point p) adds the Point p to the Tour after the closest Point already in the Tour.

If there are multiple closest Points with equal distances to p, insert p after the first such Point in the linked list.

Your method must behave as insertInOrder() does when the linked list is empty.

If you wrote a helper function in the previous section that inserts a given Point after a given Node, you may find it useful again here.

Required Testing: Make sure your VisualizeTour results match the figures below for the Nearest-Neighbor Heuristic for all test cases through tsp100.txt. Both the drawing itself, and the size and distance, need to match. Then submit and make sure it passes our submission tests as well.

C. `insertSmallest()`

insertSmallest(Point p) adds the Point p to the Tour in the position where it would cause the smallest increase in the Tour's distance.

Do not compute the entire Tour distance for each position of p. Instead, compute the incremental distance: the change in distance from adding p between Points s and t is the sum of the distances from s to p and from p to t, less the original distance from s to t.

If there are multiple positions for p that cause the same minimal increase in distance, insert p in the first such position.

Your method must behave as insertInOrder() does when the linked list is empty.

If you wrote a helper function when writing insertInOrder() that inserts a given Point after a given Node, you may find it useful again here.

Comment out all print statements in Tour before running VisualizeTour on a file of more than 100 Points. Otherwise, you will be waiting for a long time for VisualizeTour to finish.

Required Testing: Make sure your VisualizeTour results match the figures below for all test cases through tsp100.txt. Both the drawing itself, and the size and distance, need to match. Then submit and make sure it passes our submission tests as well.

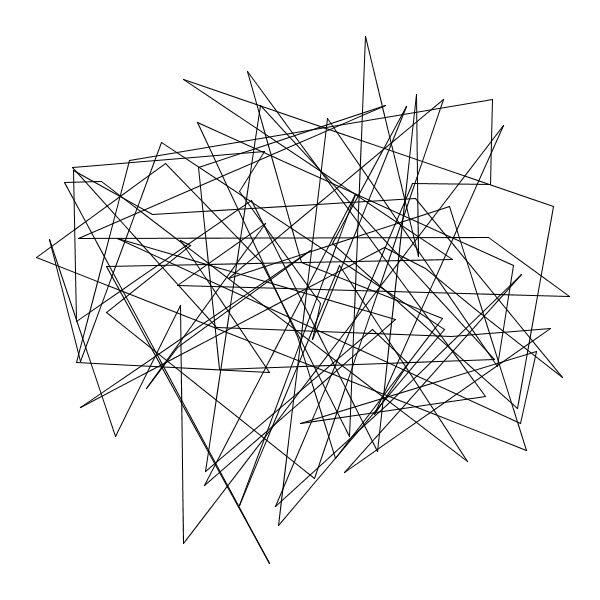

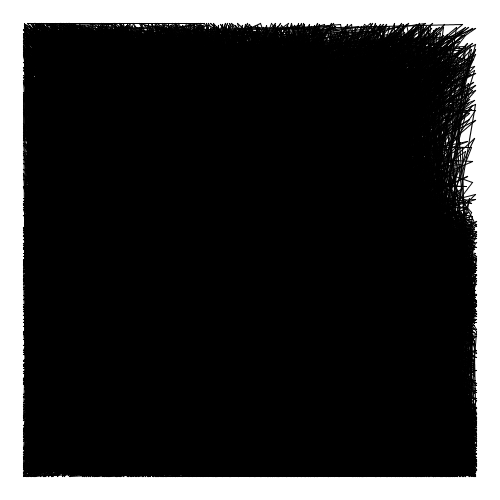

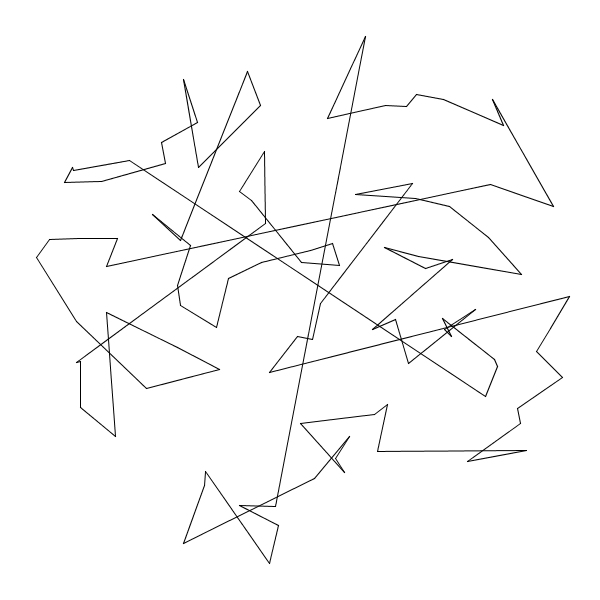

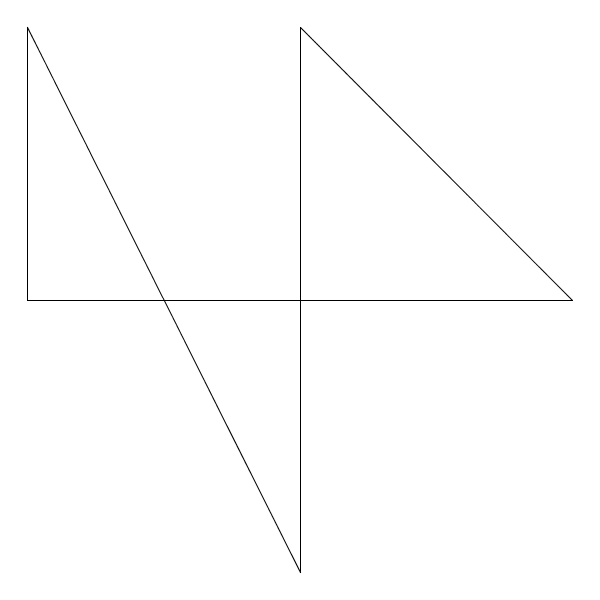

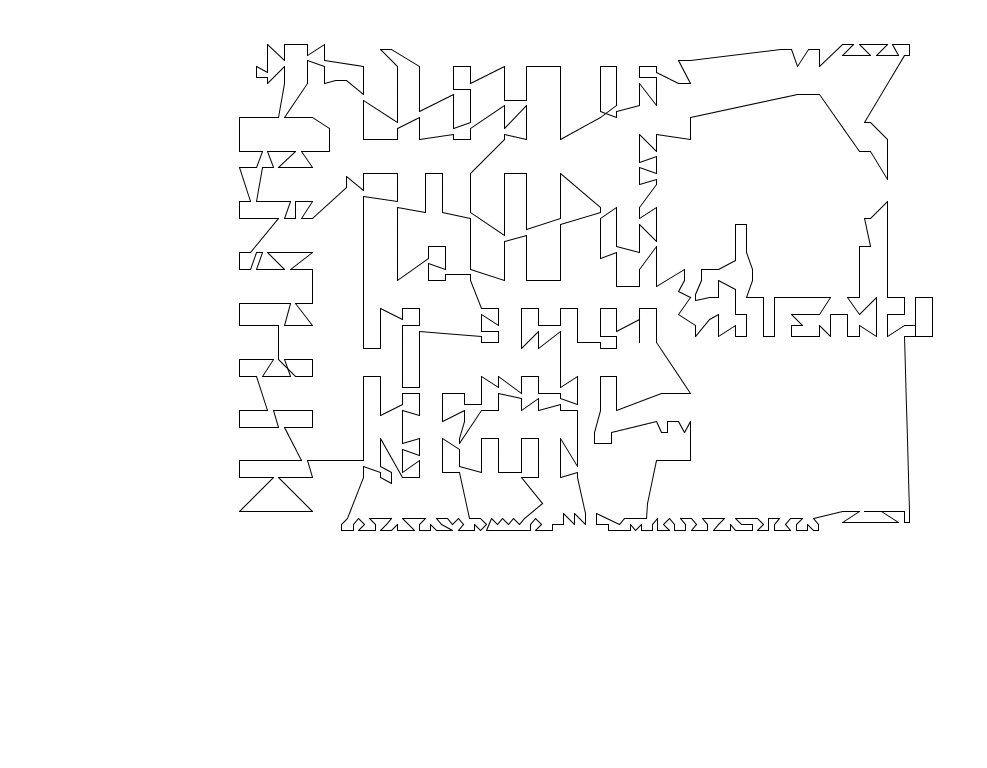

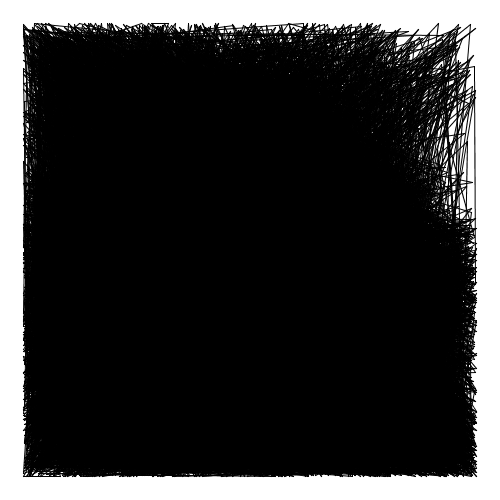

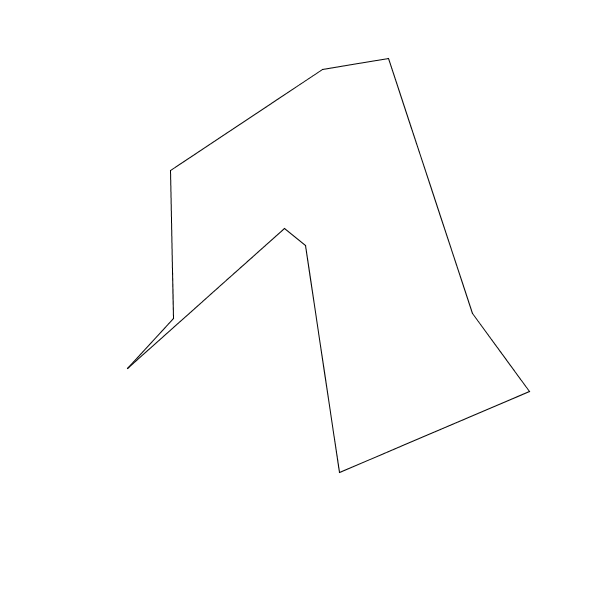

D. Reference Output

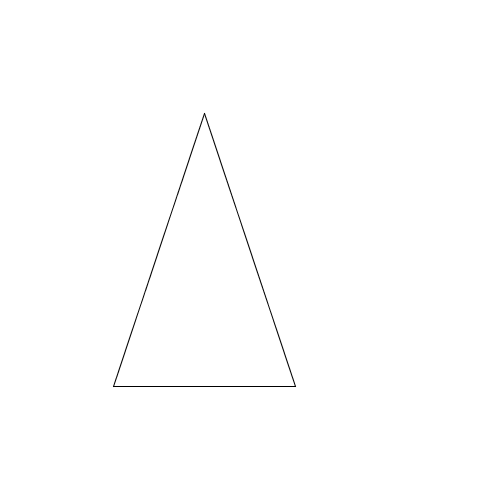

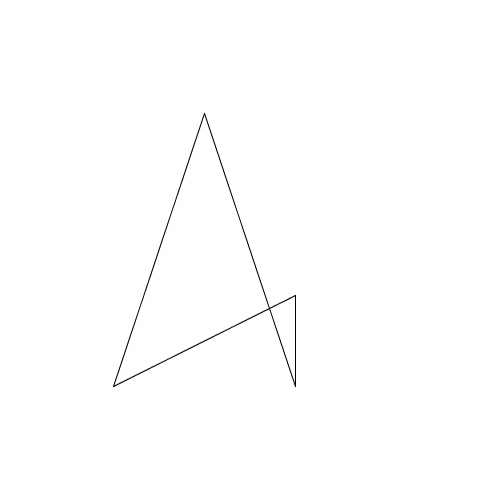

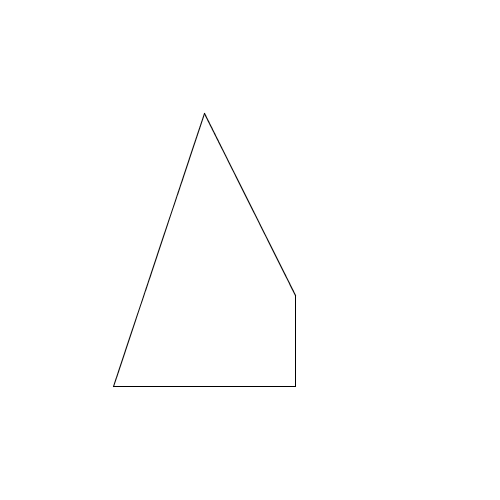

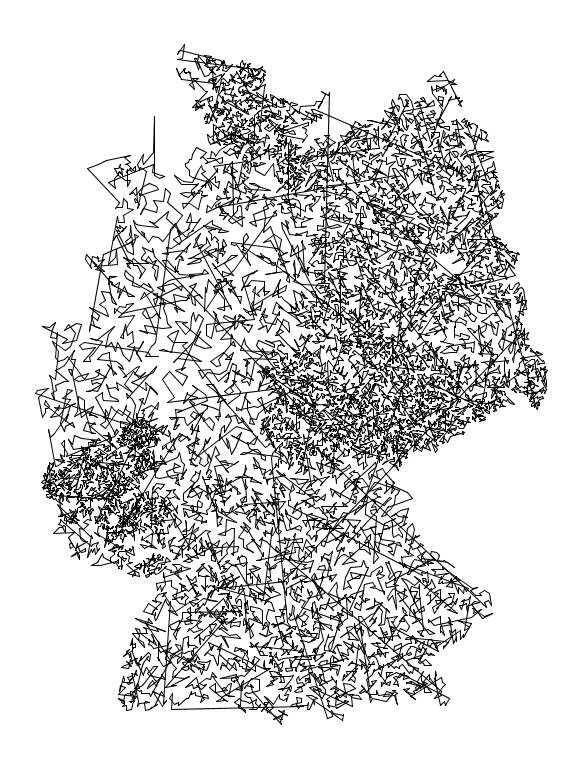

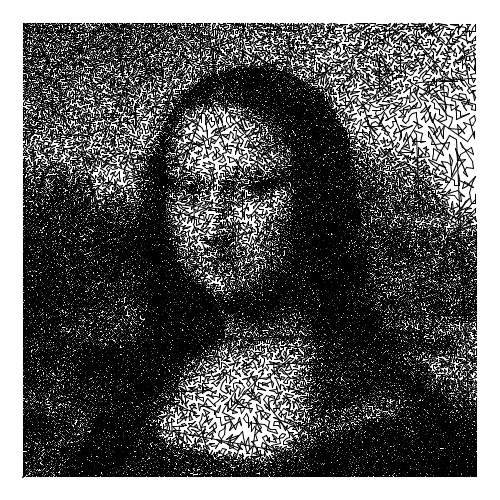

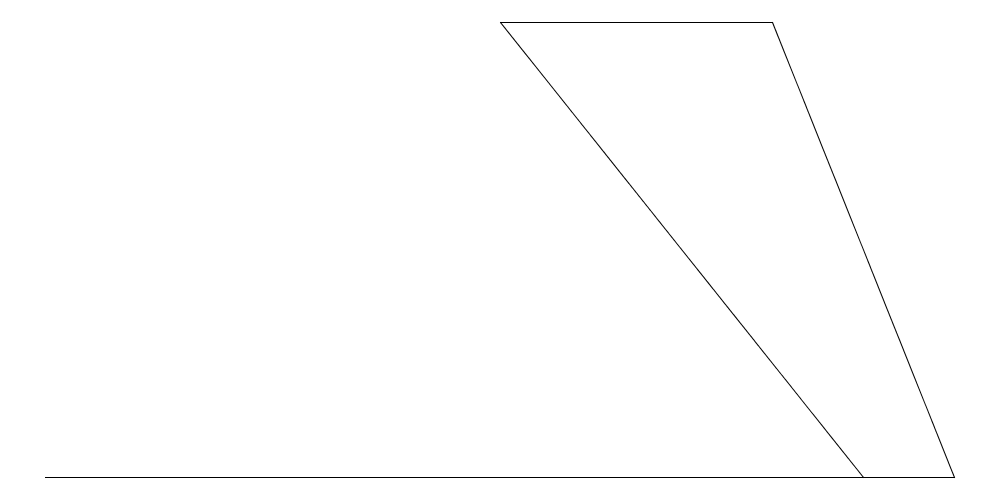

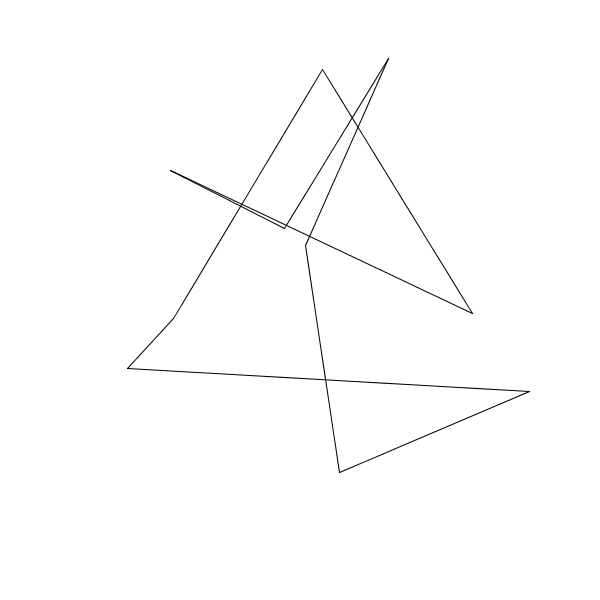

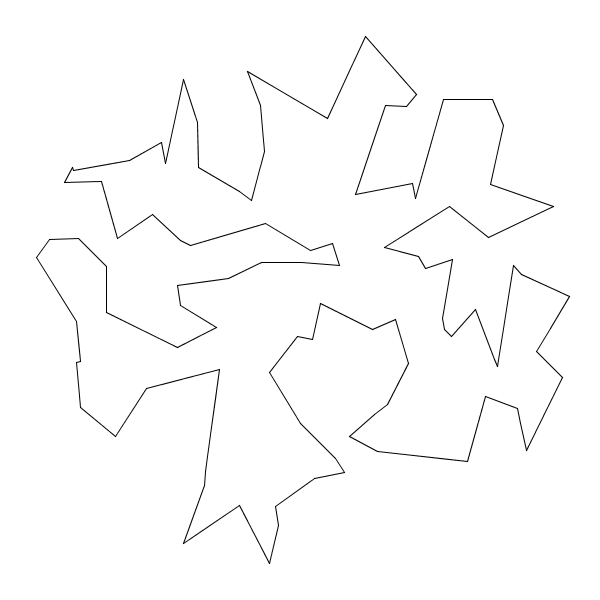

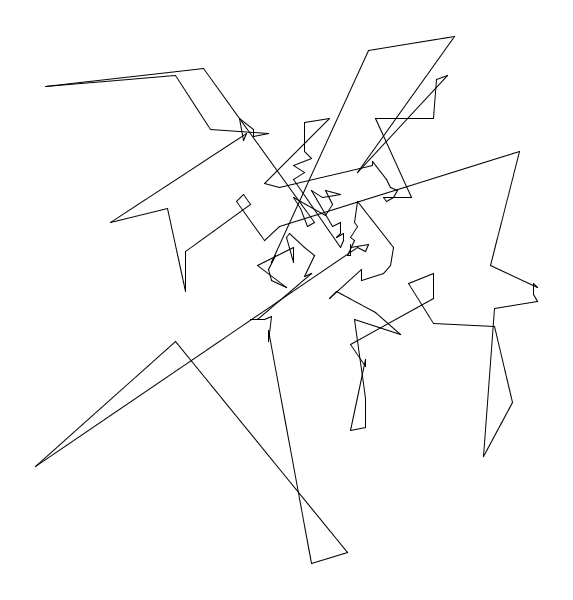

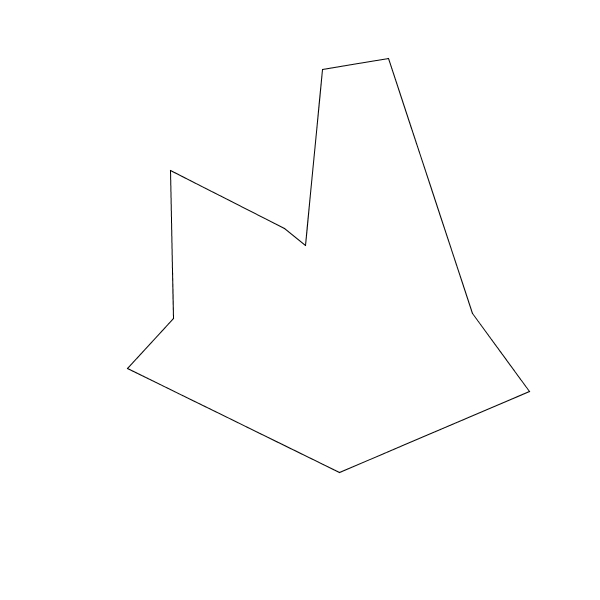

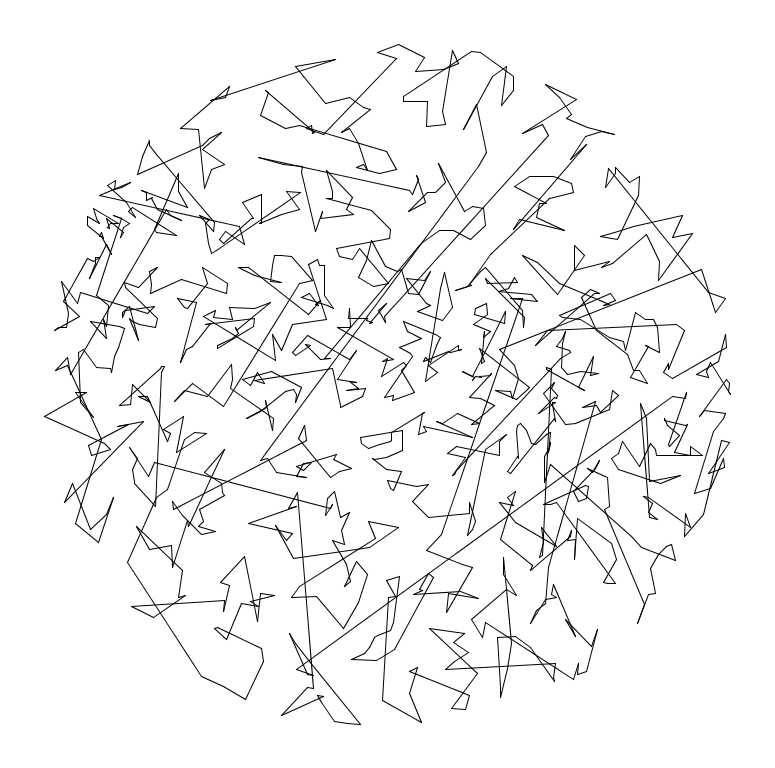

Test your nearest-neighbor heuristic and smallest-increase heuristic methods using VisualizeTour. The following are the values and PennDraw output that your Tour methods should give for each of the provided input files.

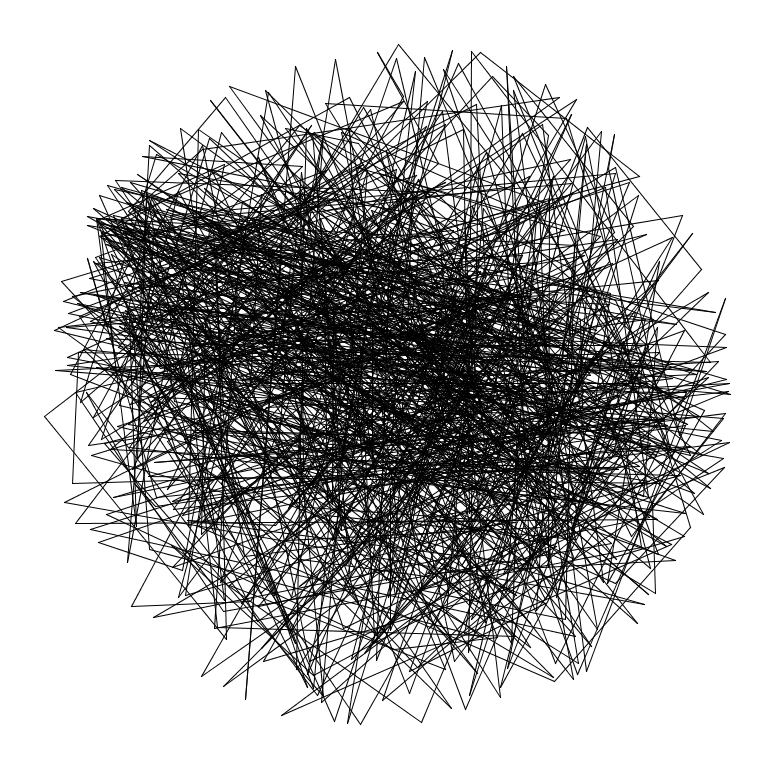

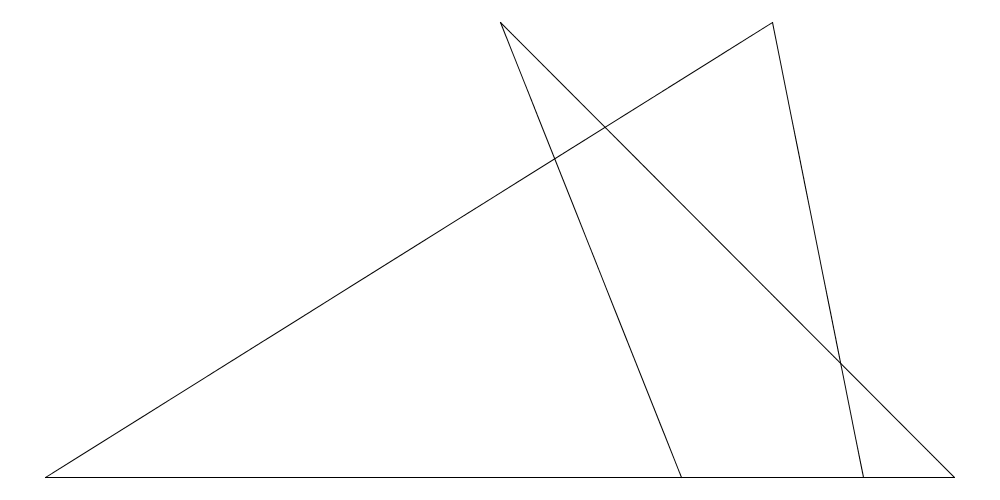

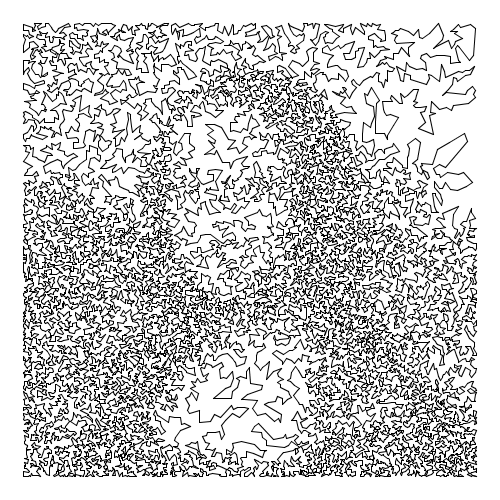

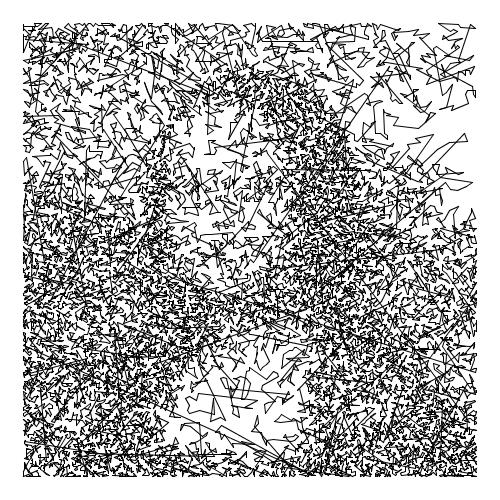

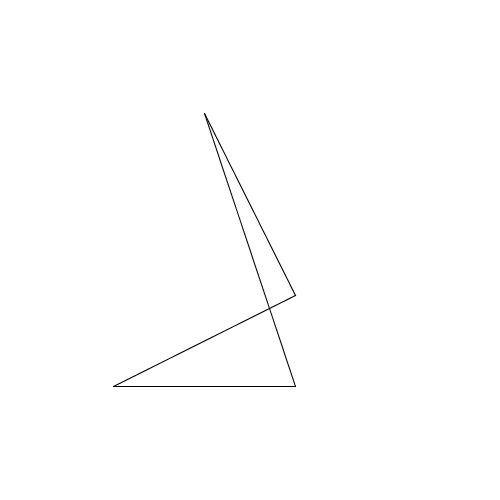

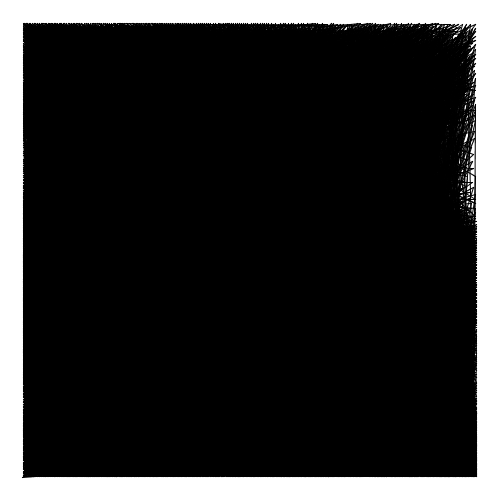

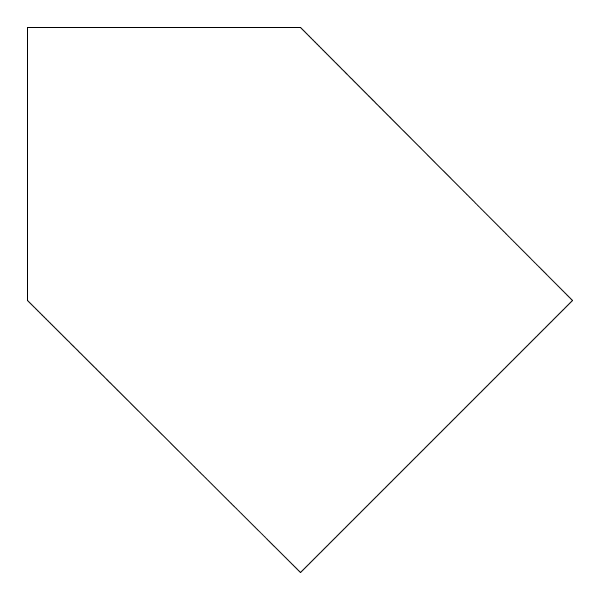

File	In-Order Insertion (`'o'`)	Nearest-Neighbor Heuristic (`'n'`)	Smallest-Increase Heuristic (`'s'`)
`tsp0.txt`	Size: 0 Distance: 0.0000	Size: 0 Distance: 0.0000	Size: 0 Distance: 0.0000
`tsp1.txt`	Size: 1 Distance: 0.0000	Size: 1 Distance: 0.0000	Size: 1 Distance: 0.0000

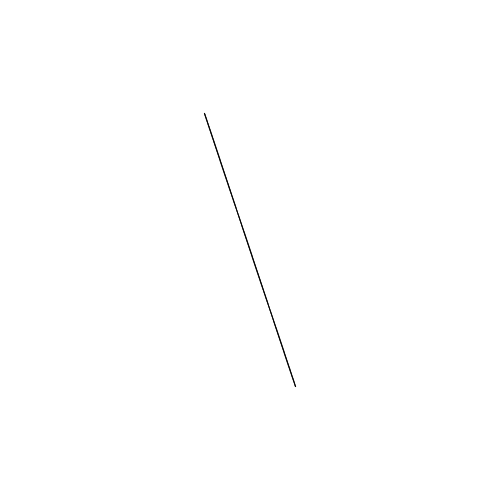

`tsp2.txt`	Size: 2 Distance: 632.46	Size: 2 Distance: 632.46	Size: 2 Distance: 632.46
`tsp3.txt`	Size: 3 Distance: 832.46	Size: 3 Distance: 832.46	Size: 3 Distance: 832.46
`tsp4.txt`	Size: 4 Distance: 963.44	Size: 4 Distance: 956.06	Size: 4 Distance: 839.83
`tsp5.txt`	Size: 5 Distance: 2595.1	Size: 5 Distance: 2595.1	Size: 5 Distance: 1872.8
`tsp8.txt`	Size: 8 Distance: 3898.9	Size: 8 Distance: 3378.8	Size: 8 Distance: 2545.6
`tsp10.txt`	Size: 10 Distance: 2586.7	Size: 10 Distance: 1566.1	Size: 10 Distance: 1655.7
`tsp100.txt`	Size: 100 Distance: 25547	Size: 100 Distance: 7389.9	Size: 100 Distance: 4887.2
`tsp1000.txt`	Size: 1000 Distance: 3.2769e+05	Size: 1000 Distance: 27869	Size: 1000 Distance: 17266

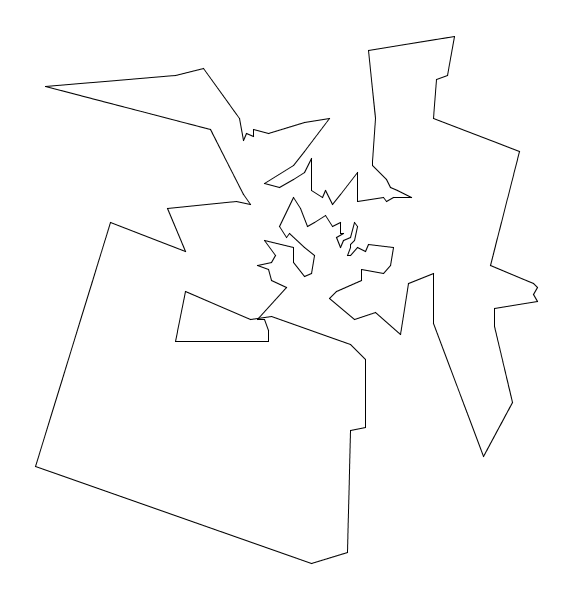

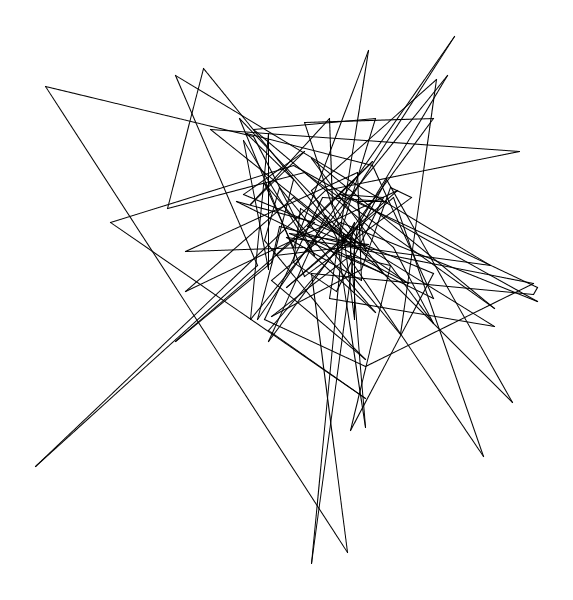

`bier127.txt`	Size: 127 Distance: 21743	Size: 127 Distance: 6494.0	Size: 127 Distance: 4536.8

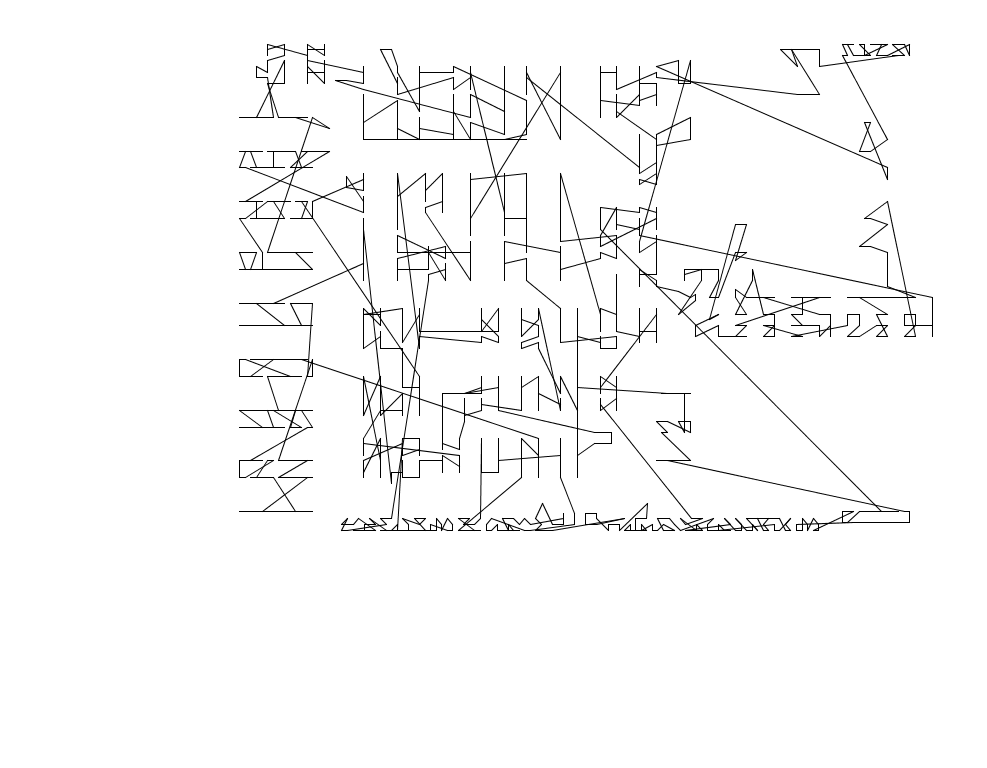

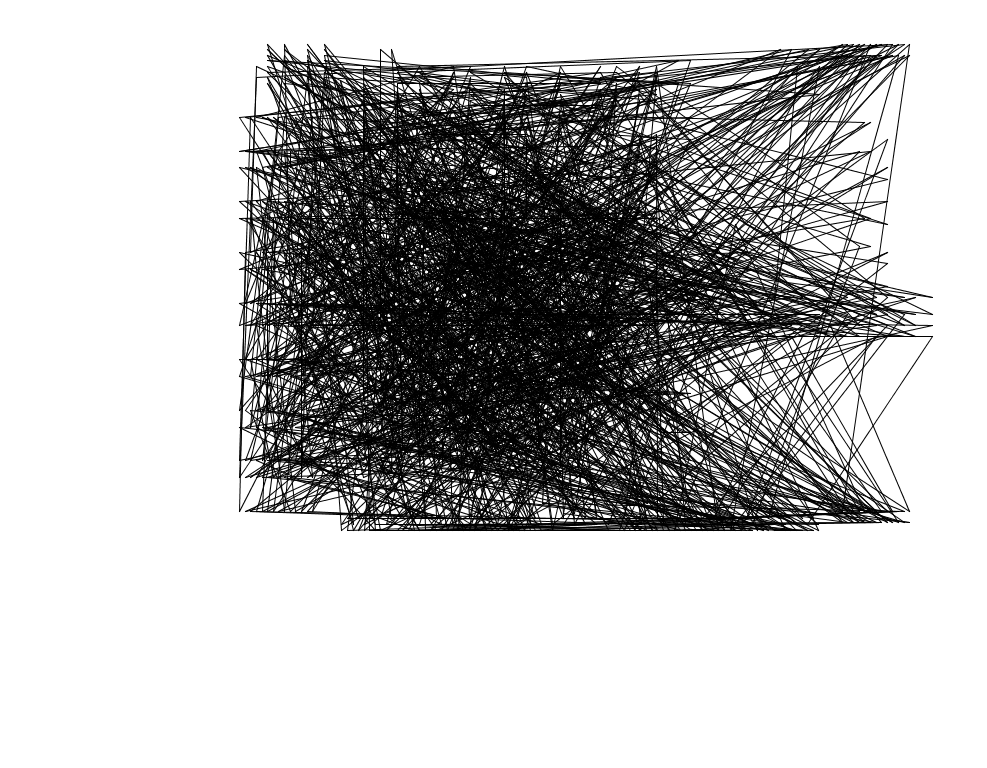

`circuit1290.txt`	Size: 1290 Distance: 4.3033e+05	Size: 1290 Distance: 25030	Size: 1290 Distance: 14596

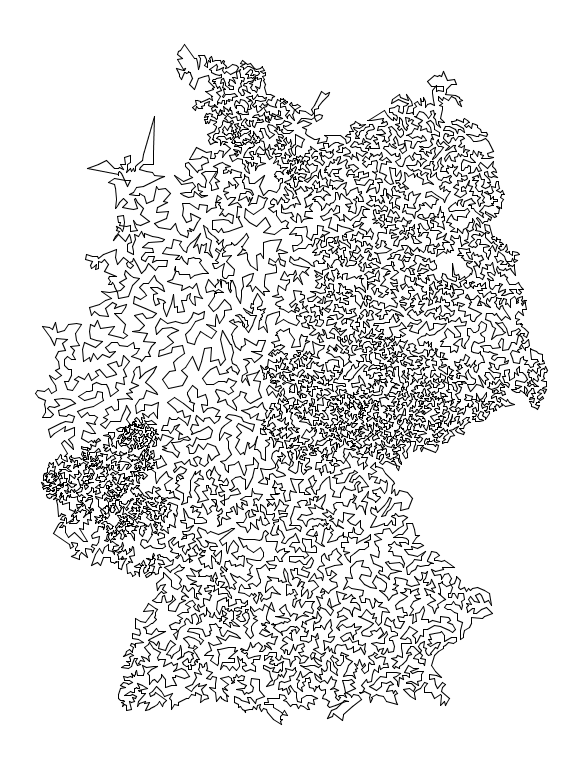

`germany15112.txt`	Size: 15112 Distance: 4.2116e+06	Size: 15112 Distance: 93119	Size: 15112 Distance: 55754
`mona-20k.txt`	Size: 20000 Distance: 4.9650e+06	Size: 20000 Distance: 94894	Size: 20000 Distance: 56334

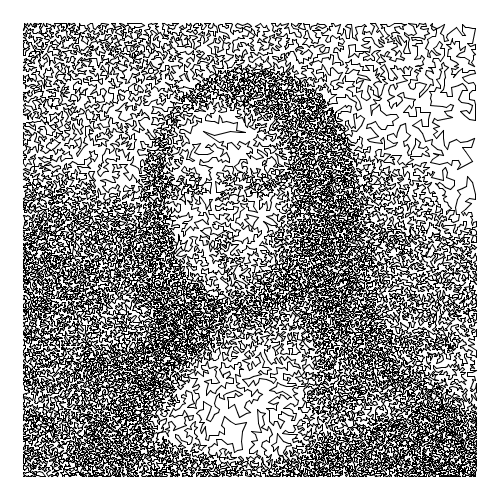

`mona-50k.txt`	Size: 50000 Distance: 1.2366e+07	Size: 50000 Distance: 1.6168e+05	Size: 50000 Distance: 95598
`mona-100k.txt`	Size: 100001 Distance: 2.4795e+07	Size: 100001 Distance: 2.6272e+05	Size: 100001 Distance: 1.5472e+05

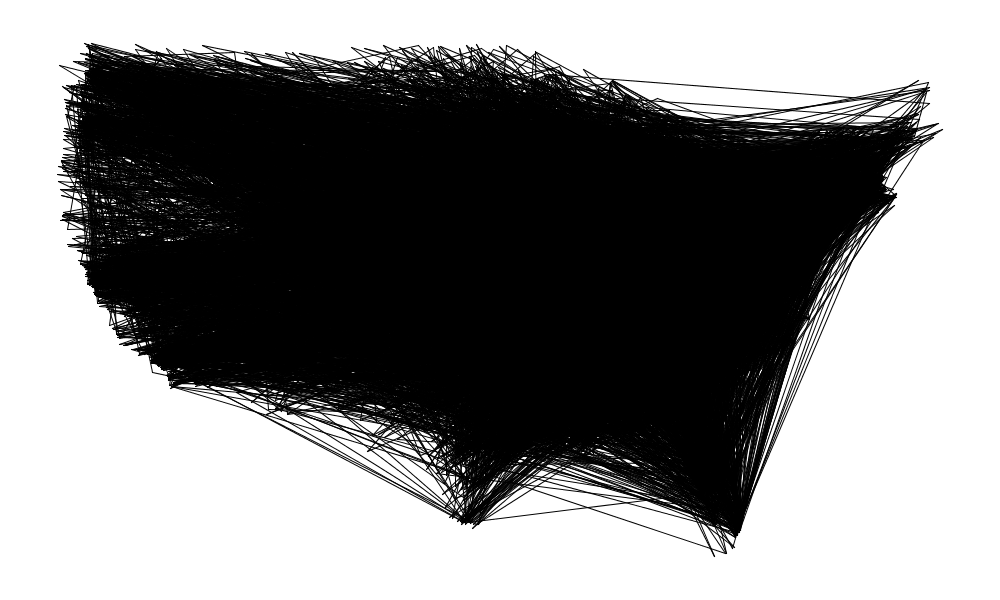

`usa13509.txt`	Size: 13509 Distance: 3.9108e+06	Size: 13509 Distance: 77450	Size: 13509 Distance: 45075

A. Extra credit

For extra credit, implement a better heuristic in a class TourEC that implements the TourECInterface interface. You are not required to use the Tour or Point classes for your extra credit solution. If you use a modified version of these classes to implement TourEC, include them in your extra.zip; otherwise, your TA may be unable to compile your code.

Be warned that this is a relatively difficult extra credit, although it gives an opportunity to learn a great deal about an extremely important problem. We will award a special prize to the student whose TourEC finds the shortest tour around the 1,000-point set in tsp1000.txt within about five minutes of runtime.

Here are some heuristics you may choose to implement.

Farthest insertion The farthest insertion heuristic is just like the smallest increase insertion heuristic described in the assignment, except that the Points need not be inserted in the same order as the input. Start with a Tour consisting of the two Points that are farthest apart. Repeat the following:

Among all Points not in the Tour, choose the one that is farthest from any Point already in the Tour.
Insert that Point into the Tour in the position where it causes the smallest increase in the distance.

You will have to store all of the unused Points in an appropriate data structure, until they get inserted into the Tour. If your code takes a long time, your algorithm probably performs approximately n³ steps. If you're careful and clever, this can be improved to n² steps.

Node interchange local search Run the original greedy heuristic (or any other heuristic). Then, repeat the following:

Choose a pair of Points.
Swap the two Points in if this improves the Tour. For example if the original greedy heuristic returns 1-5-6-2-3-4-1, you might consider swapping 5 and 3 if the Tour 1-3-6-2-5-4-1 has a smaller distance.

Writing a function to swap two nodes in a linked list provides great practice with coding linked lists. Be careful, it can be a little trickier that you might first expect (e.g., make sure your code handles the case when the two Points occur consecutively in the original Tour).

Edge interchange local search Run the original greedy heuristic (or any other heuristic). Then, repeat the following:

Choose a pair of edges, say 1-2 and 3-4.
Replace them with 1-3 and 2-4 if the resulting Tour 1-3-6-2-5-4-1 has a smaller distance.

This requires some care, as you will have to reverse the orientation of the links in the original Tour between Nodes 3 and 2. After performing this heuristic, there will be no crossing edges in the Tour, although it need not be optimal.

B. Enrichment

The best known tour for tsp1000.txt is a solution of distance 15476.519, which was found using the Concorde TSP solver.
Georgia Tech's TSP site contains a wealth of interesting information including many applications of the TSP and two TSP games.

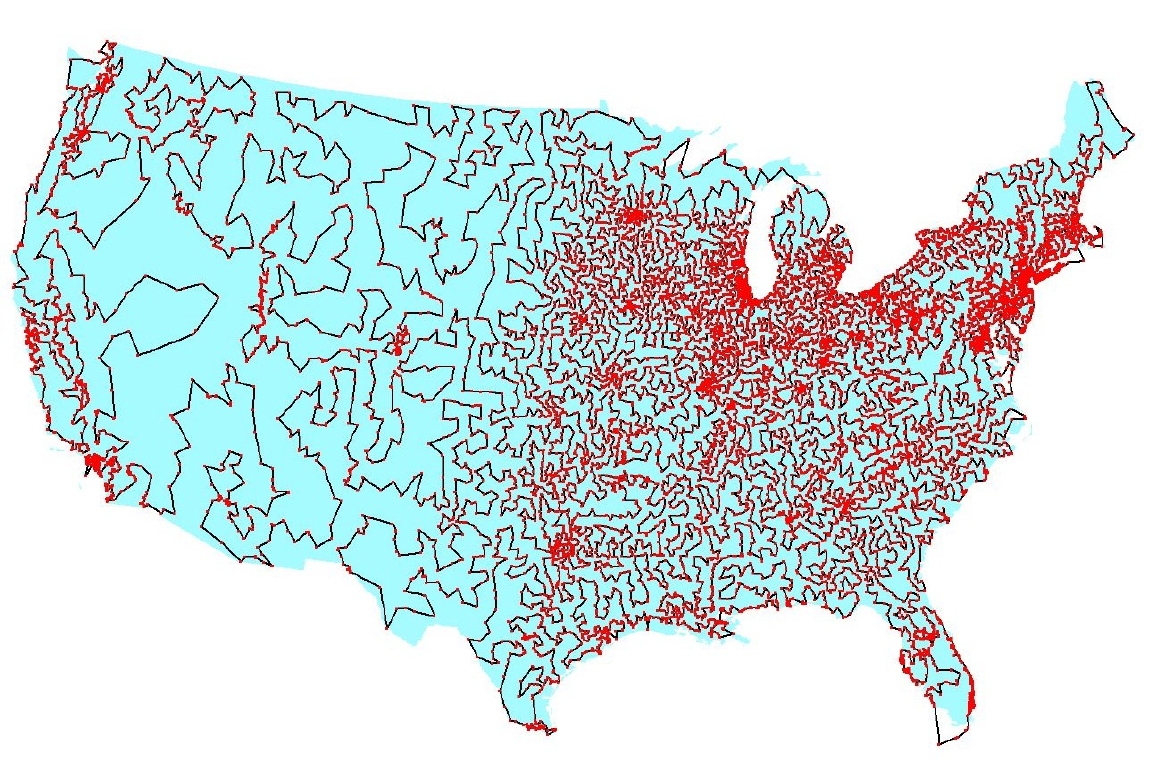

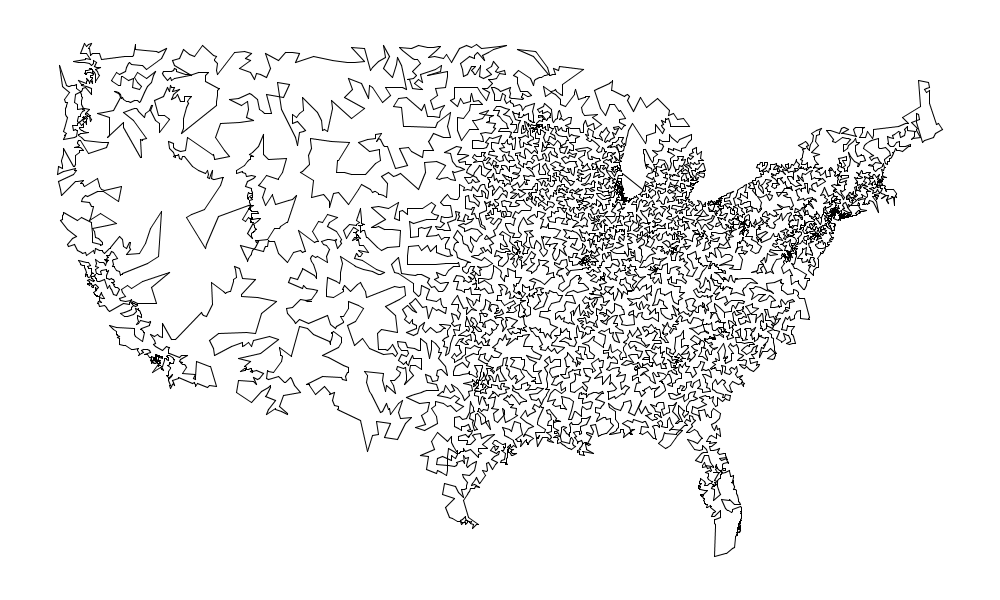

Here's a 13,509 city problem that contains each of the 13,509 cities in the continental US with population over 500. The optimal solution was discovered in 1998 by Applegate, Bixby, Chvatal and Cook using theoretical ideas from linear and integer programming. The following 15,112 city problem was solved to optimality in April, 2001, and is the current world record. It took 585,936,700 CPU seconds (along with a ton of cleverness) to find the optimal tour through 15,112 cities in Germany.
Some folks even use the TSP to create and sell art. Check out Bob Bosch's page. You can even make your own TSP artwork.
Here is a New York Times article on finding an optimal traveling politician tour in the state of Iowa.
Here's a survey article on heuristics for the TSP.

A. Readme

Complete readme_tsp.txt in the same way that you have done for previous assignments.

B. Submission

Submit Tour.java and readme_tsp.txt on the course website.

You may also submit a TourEC.java file for extra credit. If your TourEC.java requires any additional files, including a modified Point.java or Tour.java, you may submit them in a zip file named extra.zip.
